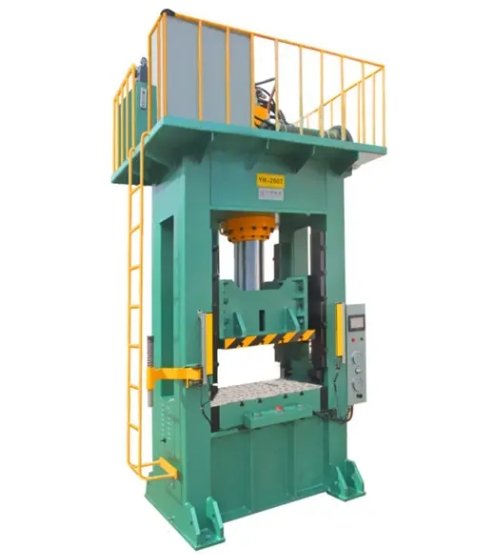

Sliding Deep Drawing Hydraulic Press
Discover the Advantages of Sliding Deep Drawing Hydraulic Press ，We could supply not only custom machine,molds,robot arm(manipulator),auto feeder process technology, and other relative machines but also a full production line service.
Main Features
Robust Machine Frame:
- Construction: Fully welded frame processed with artificial aging and rust-resistant polishing.
- Durability: Strong rigidity with minimal deformation.
High Production Efficiency:
- Fast Sliding Bolster: Features rapid falling speed for enhanced efficiency.
Adjustable Settings:
- Customizable Parameters: Pressure, stroke, and pressurizing time can be adjusted to meet specific processing requirements.
Large Worktable and Die-Filling Space:
- Precision: High precision with eight-sided sliding rail orientation for consistent results.
Enhanced Safety:
- Lubrication System: Continuous and fixed-point cooling with quantitative thin oil for improved operational safety.
Applications
Deep Drawing and Forming:
- Applications: Auto parts, household appliance components, kitchenware, and more.
Special-Shaped Products:
- Stretching and Forming: Especially suited for manufacturing special-shaped items.
Various Pressing Processes:
- Processes: Includes stamping, deep drawing, bending, flanging, and forming for both metal and non-metal parts.

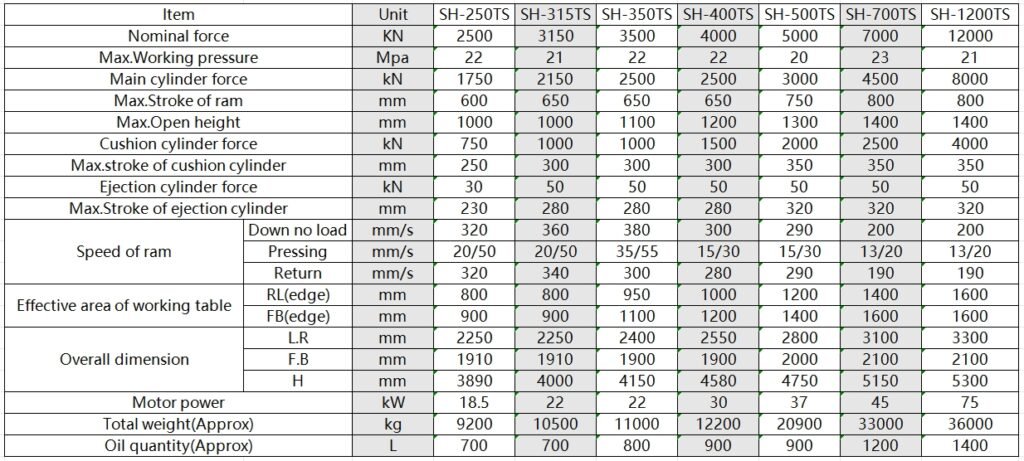

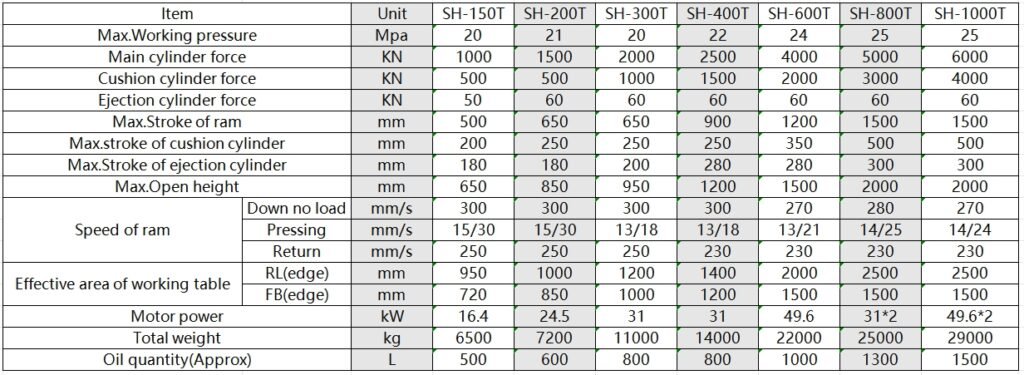

Equipment parameters
